Class 5, ecodesign boilers

DuoKo Plus boiler

15-24 kW



  • DuoKo pellet − a boiler with self-cleaning rotating pellet burner from PellasX.
  • The structure of the exchanger has been optimized in order to obtain a very high-quality combustion process. The effect of these activities is very high thermal efficiency of the boiler and low emission of pollutants supplied to the atmosphere.
Fuel:
pellets

Basic Information

PRODUCT DESCRIPTION

Compact boiler for central heating, solid fuel type pellet – DuoKo meets all the requirements of Eco Design and class 5, making it a reliable, maintenance-free and efficient source of heat for small and large living and usable areas.

Boiler with pellet feeder

The DuoKo pellet boilers with a feeder and an automated control system produced by KOTŁOSPAW Pleszew are characterized by easy operation, modern design and low emission of harmful substances, corresponding to the current, restrictive standards. The maintenance-free boiler is made of the highest quality boiler sheet, welded in gas shields, which guarantees its above-average tightness and excellent insulation.

5th class boilers – Pleszew

The top-channel boiler for central heating with DuoKo pellets is distinguished by fully automatic control, for which the efficient ecoMAX 860P microprocessor system is responsible. Extensive modules enable ongoing supervision over the operation of the feeder, furnace and blower, regulate the temperature and enable the connection of up to 4 circulation pumps (CH, DHW, floor, circulation). Simple, intuitive operation of the device and the ability to control the operation of the controller using an application for a smartphone or laptop make the DuoKo pellet boiler fully comply with the current standards for maintenance-free and easy-to-use heating devices.

Pellet central heating boiler

Thanks to the automation of all processes, from combustion of solid fuel, through automatic switching on and off of the blower, to self-cleaning of the burner, the only operating steps necessary to be performed at the DuoKo central heating furnace are to remove the ash and refill the pellet hopper. Boilers with a feeder available in the power range from 15 to 45 kW – our specialists will be happy to help you choose a boiler ideally suited to the heating surface and individual needs.

Fuels

Basic
  • pellets

Price list

Check price list

Prices are available upon request.
Please contact us and we will prepare a tailored offer for you.

export@kotlospaw.pl

Specifications

DuoKo Plus boiler
Boiler typeunit1524
Boiler powerkW1524
Power rangekW4,5-156,5-24
Approximate area of the heated room0-150*
0-200**
150-240*
200-320**
Feeder capacity – pelletkg145145
Weight without waterkg347374
Water capacityl7490
Fuel according to
PN-EN 303-5:2012
pelletsPellets 6 mm, fraction granules, calorific value> 17 MJ / kg.
Maximum water temperature° C85
Length of burningdays2-7
Efficiency%92
Cross-sectional dimension of the chimneyΦ160
Igniter powerW150
Connection portsflow2 x 1″ Gw
return2 x 1 ” Gw

* for older buildings with inferior thermal insulation 100W/m2
* for modern buildings with better thermal insulation 75W/m2

Dimensions

DuoKo Plus boiler

schemat wymiary

>

DuoKounit15 kW24 kW
Amm14591459
Bmm11731173
Cmm508538
Dmm658628
Emm505545
Fmm616646
Gmm8989
Hmm13541354
Imm18541854
aΦ1″ Gw1″ Gw
bΦ160160

Control

DuoKo Plus boiler

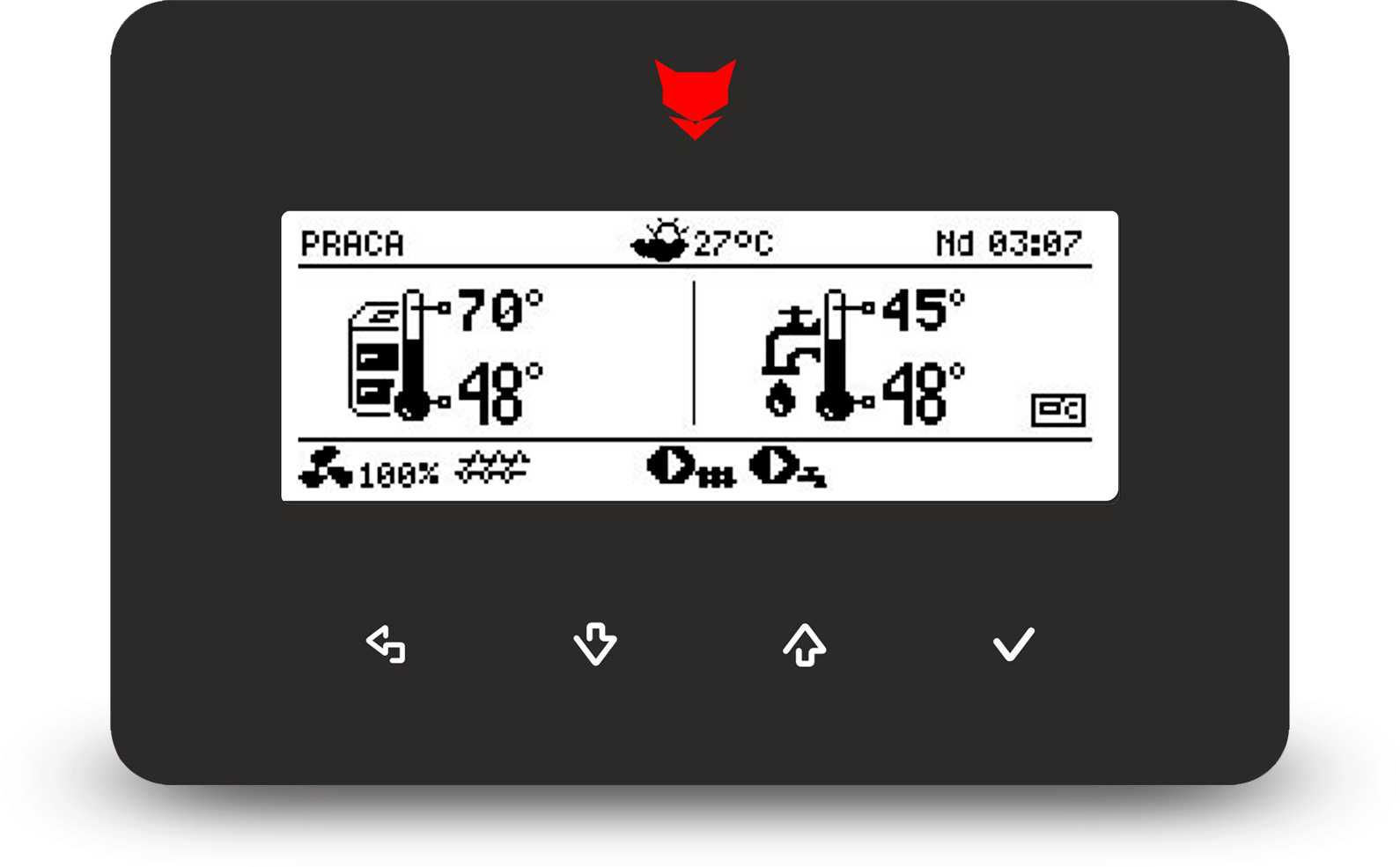

ecoMAX 860 MK2 DINsterownik ecoMAX860



ecoMAX 860P3-PE is the latest configuration of the PLUM controller. It is characterized by a clear, easy-to-use panel with a large display, user-friendly menu, and no need to set operating parameters of the installation. The controller consists of two parts: the module and the panel. Both devices are made of high quality, which means failure-free controller for many years.

The driver supports:

  • boiler pump, mixer pump, DHW pump, circulation pump and a shunt pump
  • mixing valve actuator
  • dedicated and binary room regulators
  • work with the heat buffer
  • burner operation with sensors
  • an attractive display on which information is displayed in the form of
  • legible icons
  • comfortable on-line control of the boiler operation via the Internet

Additional modules enable the expansion of heating systems with additional circuits (module B – another two circuits; module C – another two circuits). Moreover, it is possible to cooperate with the Lambda probe module (ecoLAMBDA). The controller uses an intelligent menu system. The system makes unconnected elements inactive (invisible). This solution enables easy and comfortable operation.
