DrewKo Plus boilers

DrewKo Plus boiler (PellasX burner) – WITHDRAWN FORM PRODUCTION

12 - 24 kW

WITHDRAWN FORM PRODUCTION

DrewKo Plus – a boiler adapted for efficient combustion of wood pellets in accordance with the PN-EN 303-5:2021 standard
equipped with a self-cleaning burner with a rotating combustion chamber – REVO by PellasX.

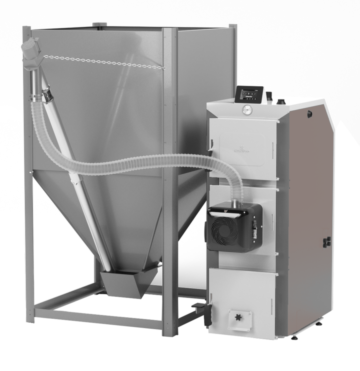

The boiler can be accompanied by a free-standing tank made of galvanized steel from the offer. The tank can be located on the right or left side of the boiler, it allows for a longer period of operation of the device without adding fuel.
the boiler can also be used as a wood gasification boiler.

Fuel:
pellet

Basic

pellet

Boiler type		12	18	24
Boiler power	kW	12	18	24
Power range	kW	3,6 – 12	5,5 – 18	7,2 – 24
Recommended capacity of the accumulation tank	l	504	756	1008
Approximate area of the heated room	m²	do-120 * do-160 **	120-180* 160-240**	180-240* 240-320**
Boiler weight	kg	375	405	443
Boiler water capacity	l	73	81	90
Energy class		A+	A+	A+
hopper capacity	l	Tank size according to the order
Efficiency at nominal power	l	85,4	85,4	85,3
Standard fuel PN-EN 303-5:2012	paliwo	Pellet 6-8 mm, granulate fraction, calorific value > 17 MJ/kg.
Supply water temperature min/max.	° C	55/85
max. Permissible working pressure	bar	2,0
Chimney draft required	mbar	~0,20
Chimney cross section	cm x cm	140×140
Feed/return diameter	cal	1,5″
Drain port diameter	cal	3/4″
Flue diameter	ø	160
Electric power consumption when firing up	W	367
Electric power consumption when the boiler is operated at min.	W	60	57,6	57,6
Electric power consumption when the boiler is operated at max.	W	78,1	77,6	82,8
igniter power	W	300

* with older buildings with worse thermal insulation 100W/m2

** with newer buildings with better thermal insulation 75W/m2

DREWKO 20KW 5 cz bi

DrewKo Plus	j.m.	12 kW	18 kW	24 kW
A	mm	577	577	642
B	mm	455	455	520
C	mm	1162	1240	1240
D	mm	858	858	858
E	mm	790	790	790
F	mm	1100	1194	1194
H	mm	1260	1340	1340
a	ø	160	160	160
b		¾”	¾”	¾”
c		1,5″	1,5″	1,5″
d		½”	½”	½”

1. Boiler in a closed system with a 4-way mixing valve
DrewKo instalacja w ukladzie zamknietym z zaworem mieszajacym 4 drogowym 2048x1114 1

2. Boiler in an open system with a 4-way mixing valve
DrewKo instalacja w ukladzie otwartym z zaworem mieszajacym 4 drogowym 2048x1227 1

3.Boiler in a closed system with a temperature valve ATV 55*
DrewKo instalacja w ukladzie zamknietym z zaworem temperaturowym 2048x1119 1

4. Boiler in an open system with a temperature valve ATV 55*
DrewKo instalacja w ukladzie otwartym z zaworem temperaturowym 2048x1258 1

5. Boiler in a closed system with a hydraulic clutch
DrewKo instalacja w ukladzie zamknietym ze sprzeglem hydraulicznym 2048x982 1

6. Boiler in a closed system with a heat buffer
DrewKo instalacja w ukladzie zamknietym z buforem ciepla 2048x989 1

7. Boiler in an open system with a buffer
schemat DrewKo uklad otwarty z buforem

DrewKo Plus 12
DrewKo Plus 18
DrewKo Plus 24
